Hyundai Santa Fe: Components and Components Location - Automatic Transaxle Control System - Automatic Transaxle SystemHyundai Santa Fe: Components and Components Location

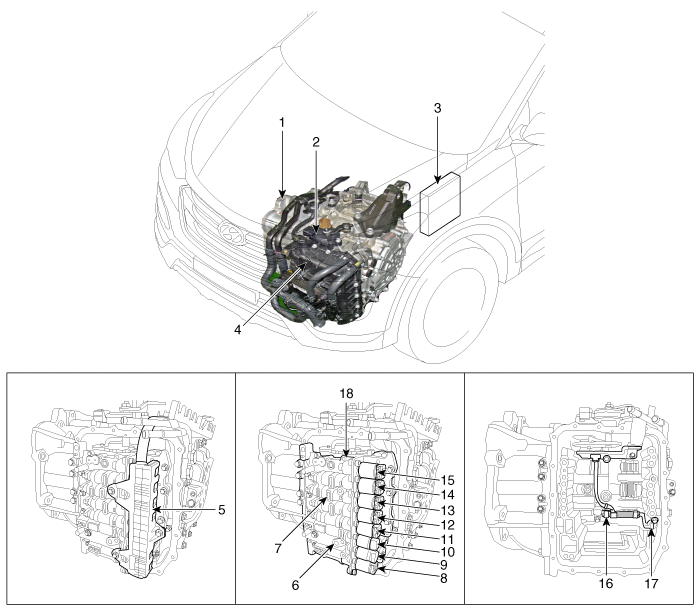

Component Location

1. Automatic transaxle
2. Inhibitor switch
3. Transaxle Control Module (TCM)
4. Valve body cover
5. Solenoid valve connect
6. Oil temperature sensor
7. Valve body assembly
8. Line Pressure Control Solenoid Valve
9. SS-A Solenoid Valve(ON/OFF)
10. SS-B Solenoid Valve(ON/OFF)
11. Overdrive Clutch Control Solenoid Valve(OD/C)
12. Underdrive Brake Control Solenoid Valve(UD/B)
13. 26 Brake Control Solenoid Valve(26/B)
14. 35R Clutch Control Solenoid Valve(35R/C)
15. Torque Converter Control Solenoid Valve (T/CON)
16. Output speed sensor
17. Input speed sensor

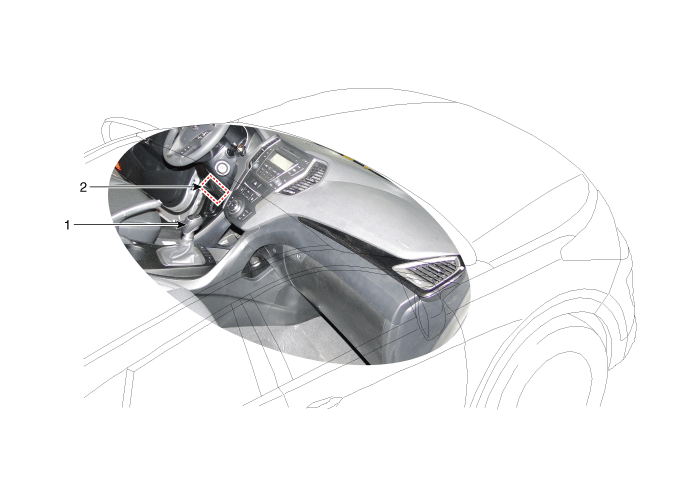

1. Shift lever
2. Data Link Connector (DLC)
