Hyundai Santa Fe (DM): Crash Pad Side Cover. Components and Components Location - Crash Pad - Body (Interior and Exterior)Hyundai Santa Fe (DM): Crash Pad Side Cover. Components and Components Location

Hyundai Santa Fe DM 2013-2018 Service Manual / Body (Interior and Exterior) / Crash Pad / Crash Pad Side Cover. Components and Components Location

Component Location

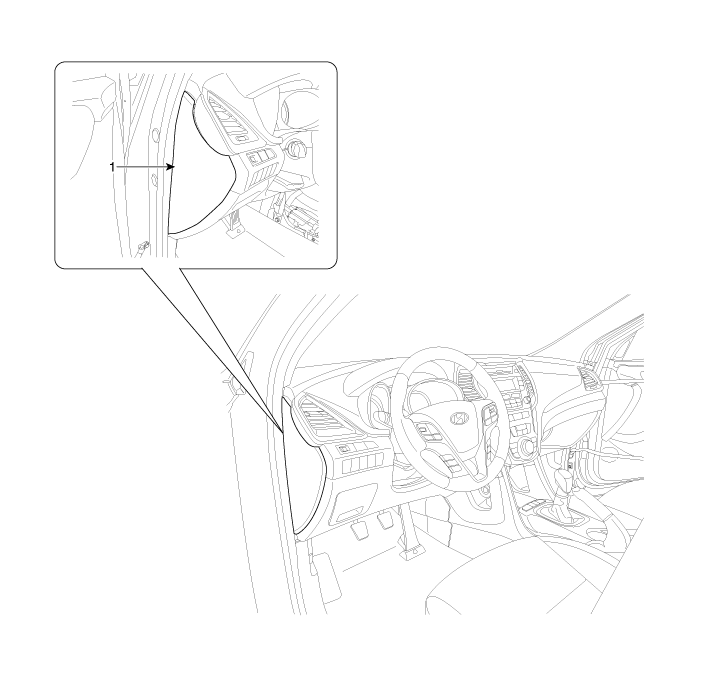

[LH]

1. Crash pad side cover [LH]

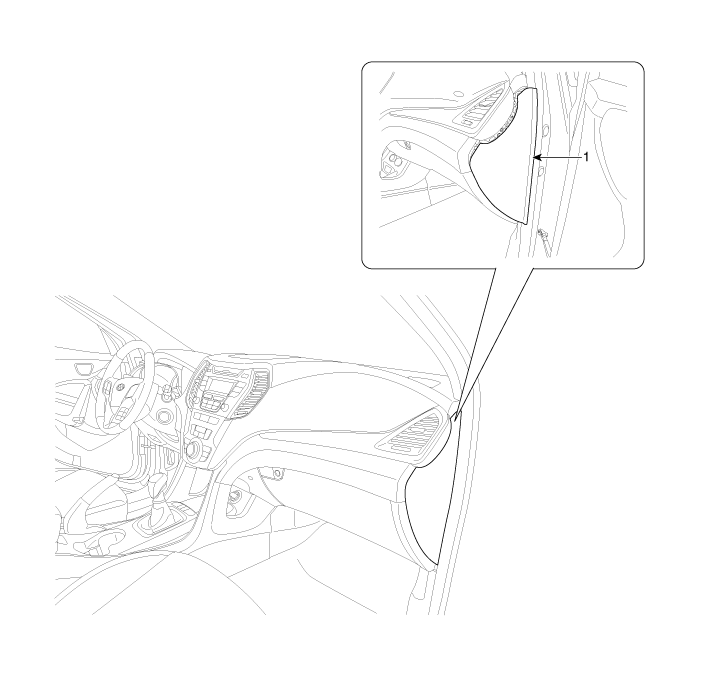

[RH]

1. Crash pad side cover [RH]
