Hyundai Santa Fe: Muffler. Components and Components Location

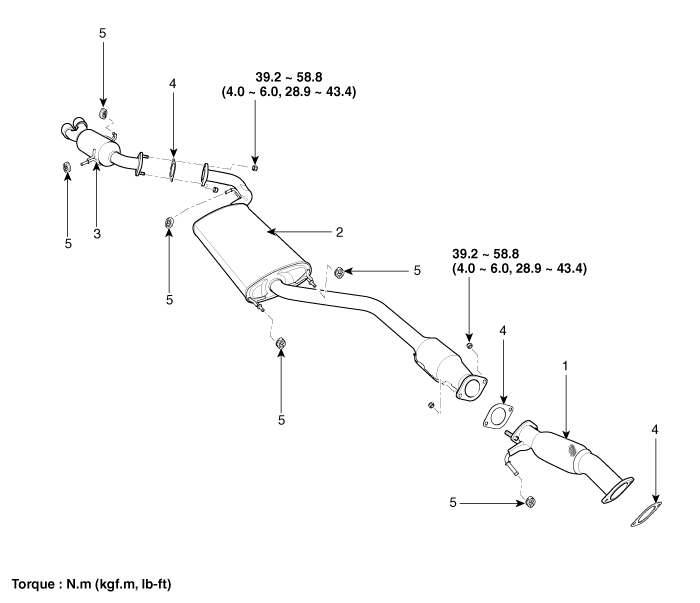

Components
|
1. Front muffler 2. Catalytic converter |
3. Center muffler 4. Main muffler |
Exhaust Manifold. Repair procedures
Removal and Installation 1. Remove the engine cover. 2. Disconnect the battery negative terminal. 3. Disconnect the front oxygen sensor connector (A) and the rear oxygen sensor connector (B). 4. Remove ...
Muffler. Repair procedures
Removal and Installation 1. Remove the front muffler (A). Tightening torque: 39.2 ~ 58.8 N.m (4.0 ~ 6.0 kgf.m, 28.9 ~ 43.4 lb-ft) 2. Remove the center muffler (A). Tightening torque: 39.2 ~ 58.8 N.m (4.0 ...
