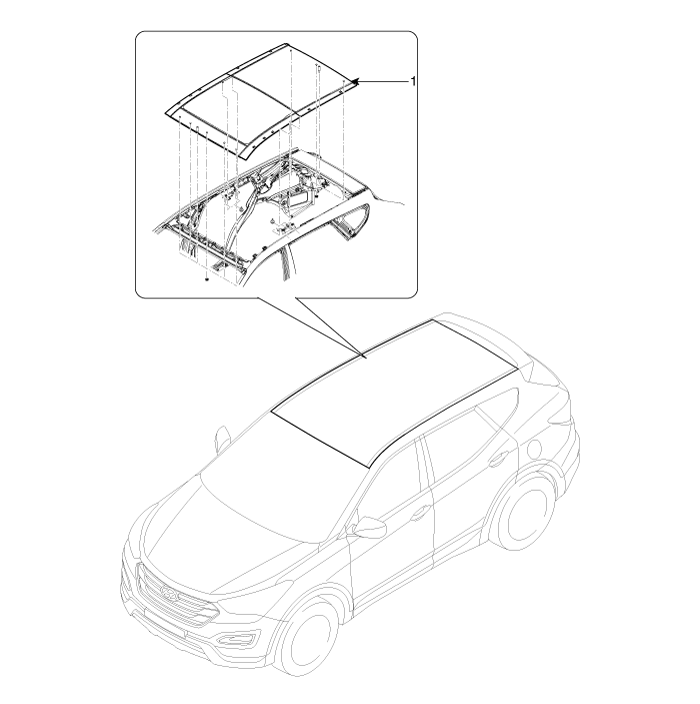

Components Location

1. Panorama sunroof assembly



Roller Blind. Repair procedures
Replacement [Removal] 1. Open the roller blind using the panorama sunroof switch. • Leave 10 ~ 20cm (0.3937 ~ 0.7874 in) of the roller blind unopened. 2. Remove the roof trim. 3. Remove the roller blind ...

Panorama Sunroof Assembly. Repair procedures
Replacement [Removal] 1. Remove the roof trim. 2. Remove the windshield glass. 3. Remove the roof rack. 4. Using a screwdriver or remover remove the rear roof molding (A) and the front roof molding (B). ...
