Hyundai Santa Fe DM 2013-2018 Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Latch. Components and Components Location

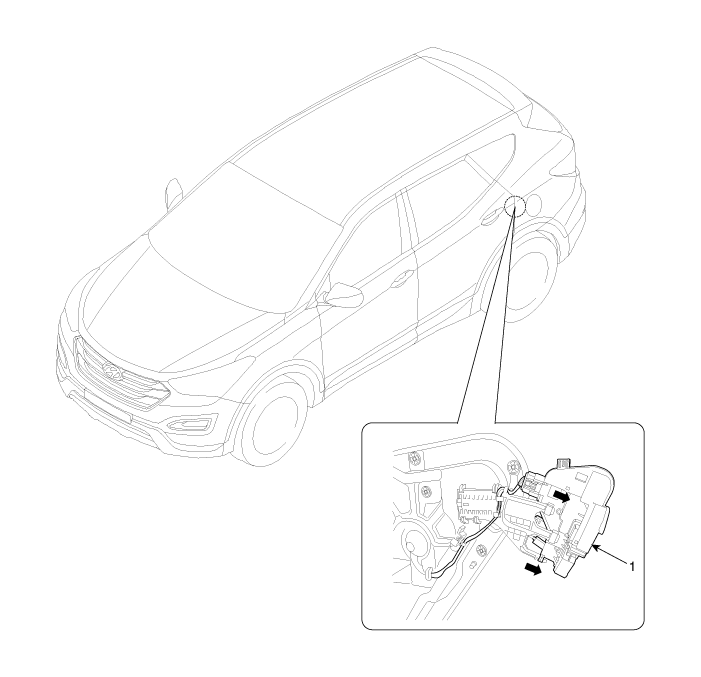

Component Location

1. Rear door latch


Rear Door Outside Handle. Repair procedures
Replacement 1. Remove the hole plug (B). 2. After loosening the mounting bolt, then remove the rear door outside handle cover (A). Tightening torque : 7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft) ...

Rear Door Latch. Repair procedures
Replacement 1. Remove the rear door module. 2. Remove the rear door outside handle base (A) by pushing in the lock pins located in the back. 3. Remove the rear door outside handle base cable (A). 4. Open ...
