Hyundai Santa Fe: Repair procedures
Adjustment
| 1. |

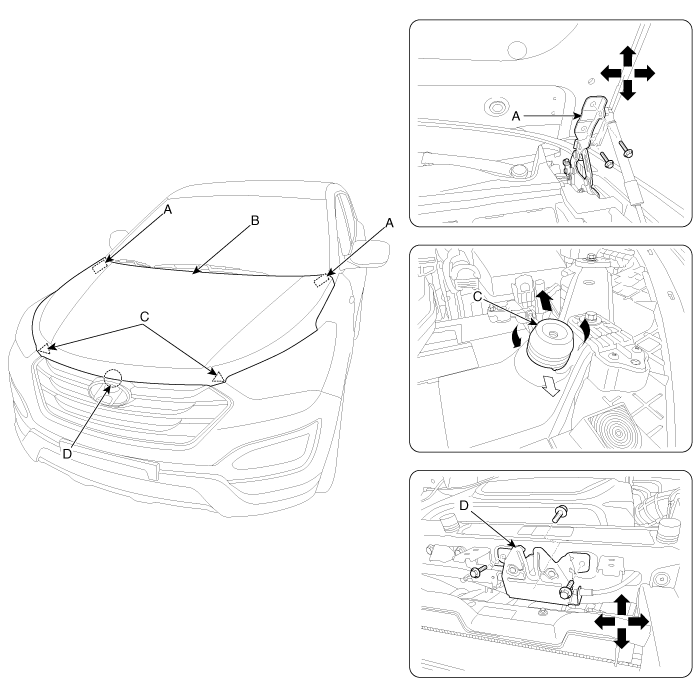

After loosening the hinge (A) mounting bolt, adjust the hood (B)
by moving it up or down, or right or left.
|
| 2. |
Adjust the hood height by turning the hood overslam bumpers (C).
|
| 3. |
After loosening the hood latch (D) mounting bolts, adjust the
latch by moving it up or down, or right or left.
|
Hood
...
Hood Assembly. Components and Components Location
Component Location 1. Hood assembly ...
