Hyundai Santa Fe: Components and Components Location
Components (1)
|

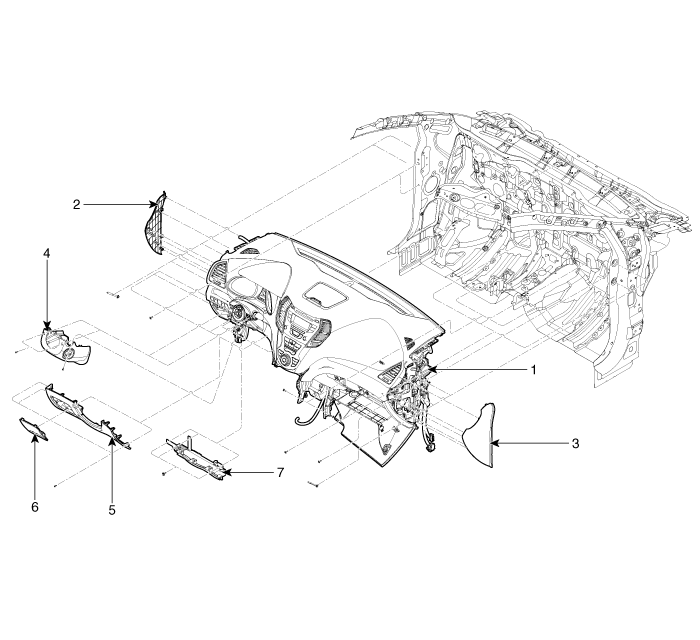

1. Main crash pad assembly 2. Crash pad side cover [LH] 3. Crash pad side cover [RH] 4. Steering column shroud lower panel |
5. Crash pad lower panel 6. Fuse box cover 7. Crash pad under cover [LH] |
Components (2)
|

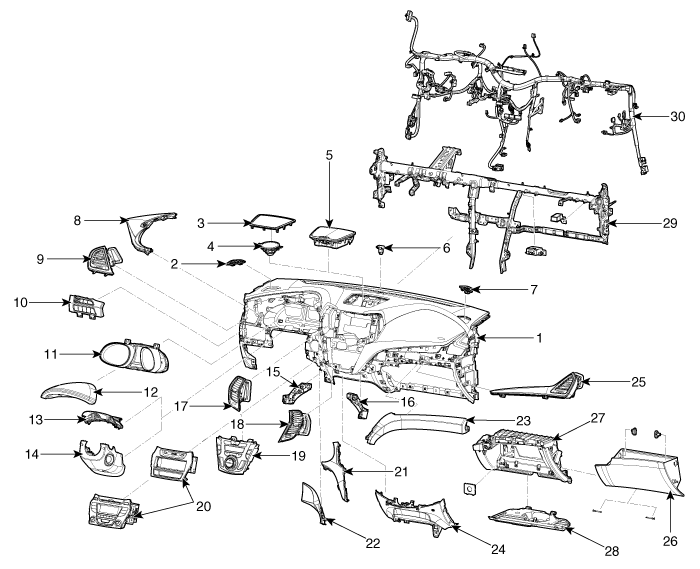

1. Main crash pad assembly 2. Side def nozzle [LH] 3. Center speaker grill 4. Center speaker assembly 5. Crash pad upper tray 6. Photo sensor 7. Side def nozzle [RH] 8. Crash pad driver's panel [LH] 9. Side air vent duct [LH] 10. Crash pad side switch 11. Cluster assembly 12. Cluster fascia upper panel 13. Steering column shroud upper panel 14. Steering column shroud lower panel 15. Center crash pad cover [LH] |
16. Center crash pad cover [RH] 17. Center air vent duct [LH] 18. Center air vent duct [RH] 19. Heater control unit 20. Audio assembly 21. Crash pad driver's panel [RH] 22. Crash pad garnish [LH] 23. Crash pad garnish [RH] 24. Crash pad center lower panel 25. Side air vent duct [RH] 26. Glove box 27. Glove box housing 28. Crash pad under cover [RH] 29. Cowl cross bar assembly 30. Crash pad main wiring harness |
