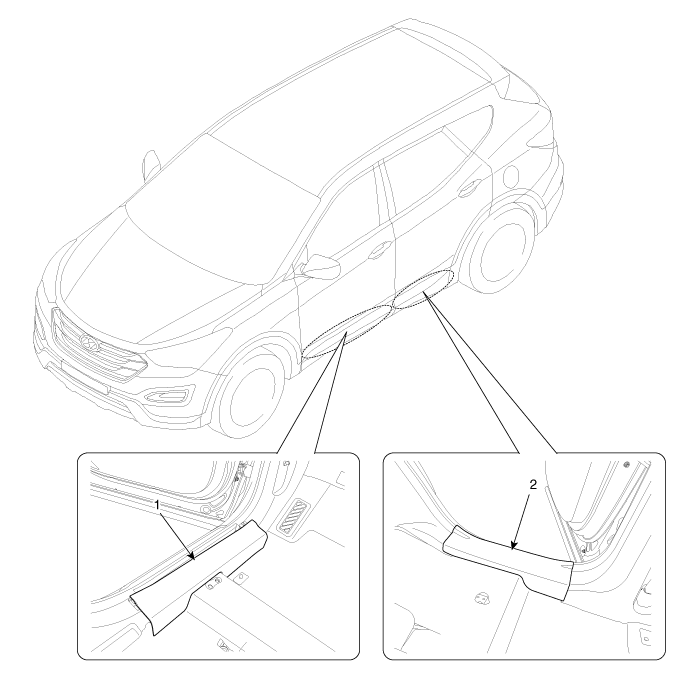

Component Location

1. Front door scuff trim
 2. Rear door scuff trim


Components and Components Location
Components 1. Front pillar trim 2. Center pillar lower trim 3. Center pillar upper trim 4. Rear pillar trim 5. Cowl side trim 6. Front door scuff trim 7. Rear door scuff trim 8.Front door step trim 9. ...

Door Scuff Trim. Repair procedures
Replacement • Put on gloves to protect your hands. • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage. • ...
