Hyundai Santa Fe: Starter. Components and Components Location - Starting System - Engine Electrical SystemHyundai Santa Fe: Starter. Components and Components Location

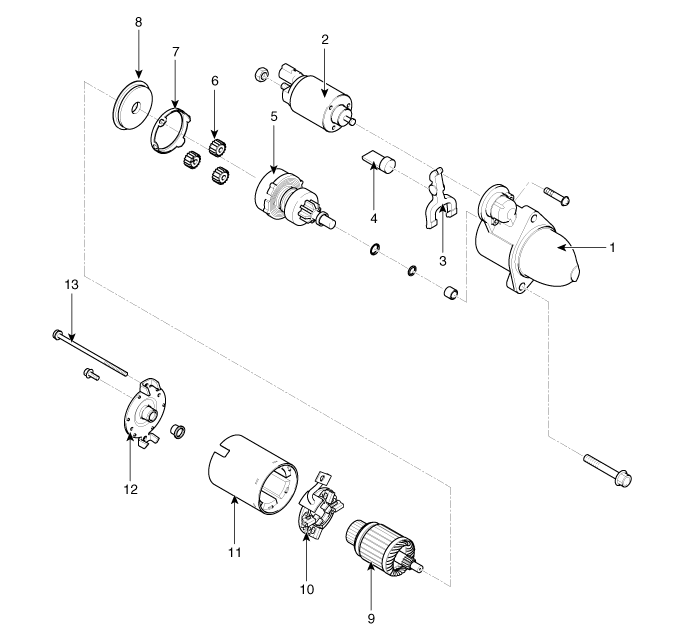

Components

1. Front housing
2. Starter solenoid assembly
3. Lever
4. Lever packing
5. Planet shaft assembly
6. Planetary gear assembly
7. Packing
8. Shield
9. Amature assembly
10. Brush holder assembly
11. Yoke assembly
12. Rear housing
13. Through bolt


Starter. Specifications
Specification Starter Item Specification Rated voltage 12 V, 1.2 kW The number of pinion teeth 11 Performance [No-load, 11 V] Ampere Max. 70 A Speed Min. 2,400 rpm ...

Starter. Schematic Diagrams
Circuit Diagram ...
